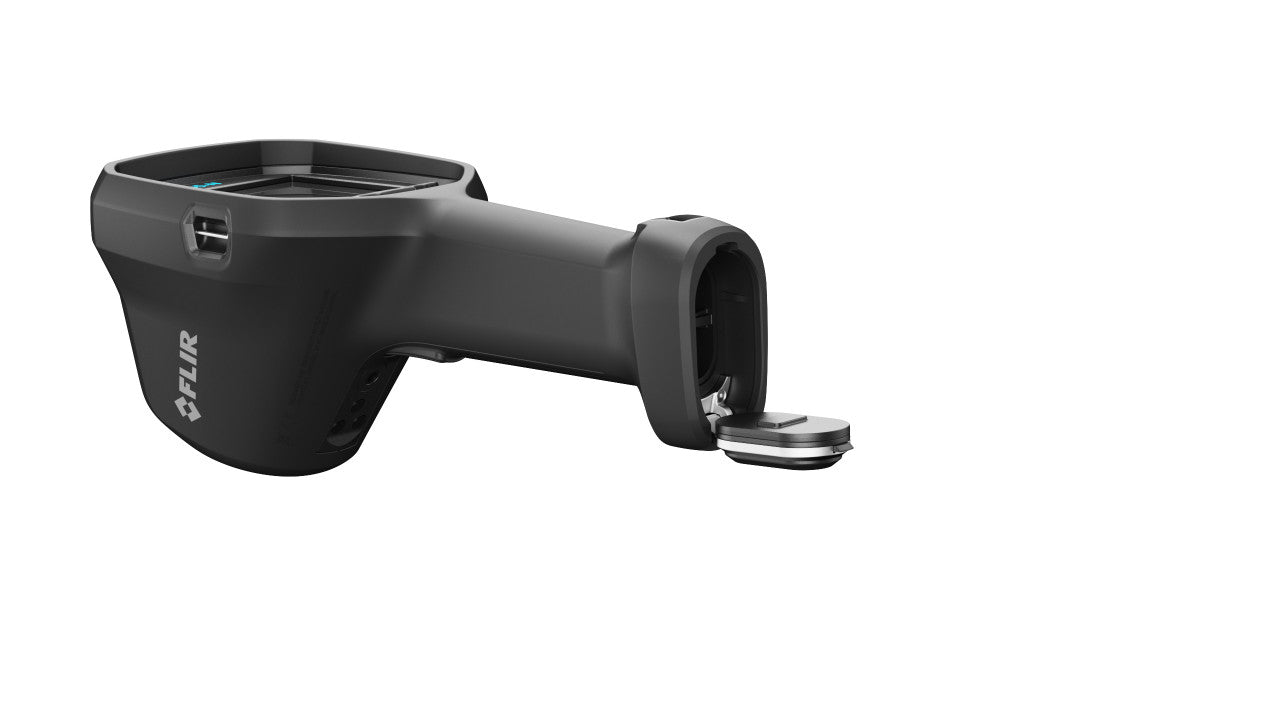

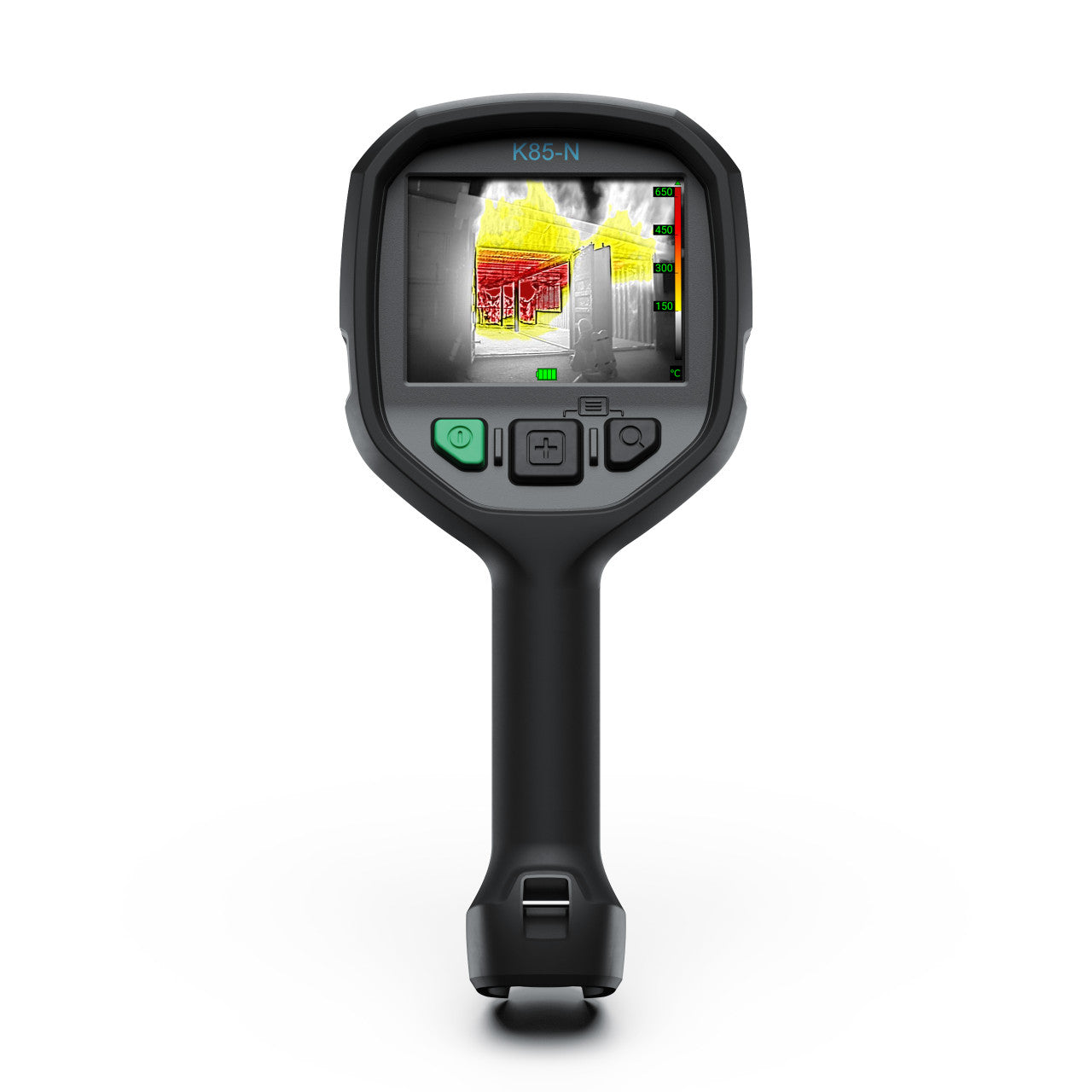

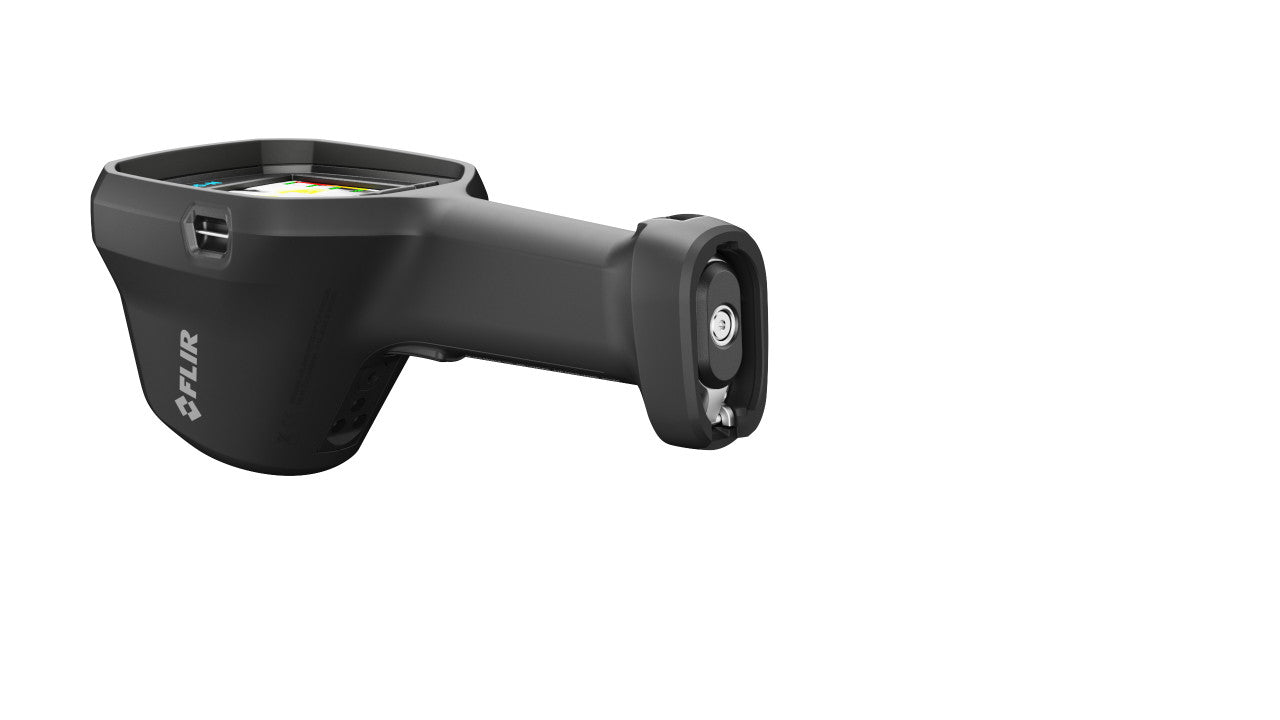

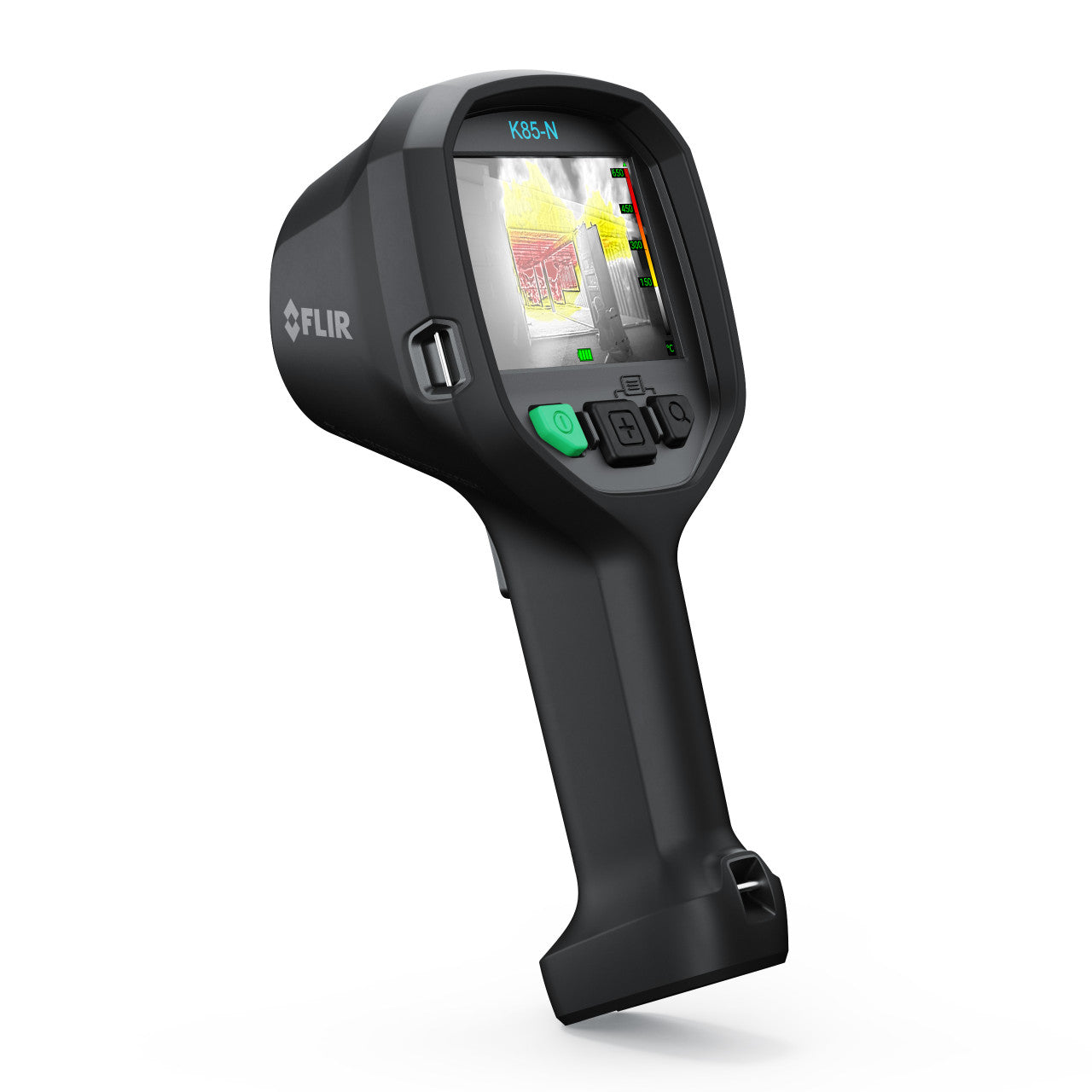

FLIR K85-N NFPA-Certified Thermal Imaging Camera

The FLIR K85-N is a high-resolution firefighting thermal imaging camera certified to the latest NFPA 1930:2025 standard. Combining 640 × 480 thermal resolution, continuous single-range imaging, wireless connectivity, and rugged fireground construction, it provides departments with exceptional visibility and certified performance in demanding environments.

NFPA-Certified Performance

The K85-N is fully certified to NFPA 1930:2025, providing departments with a thermal imaging camera evaluated against the latest requirements for firefighting equipment performance, durability, image quality, and usability.

It is designed for departments that require both advanced thermal-imaging capability and compliance with the current NFPA standard.

Maximum Thermal Clarity

The K85-N’s 640 × 480 thermal resolution provides the detailed imaging firefighters need to:

• Monitor fire behavior and heat patterns
• Navigate through smoke and darkness
• Locate victims more quickly
• Identify hidden fire spread
• Recognize structural features and hazards
• Perform overhaul and hotspot detection

Continuous Single-Range Operation

The K85-N uses an advanced single-range imaging system that operates from -4°F to 1,202°F. Unlike cameras that pause or freeze while switching temperature ranges, the K85-N provides continuous thermal imaging as conditions change—helping firefighters maintain awareness without interruption.

Built for Fireground Conditions

The K85-N is engineered to withstand the heat, water, impact, and demanding handling encountered during emergency operations.

• NFPA 1930:2025 certified
• IP67-rated protection against water and dust
• Rugged construction for frontline firefighting
• Two-meter drop resistance
• Reliable high-temperature performance
• Secure battery system
• Intuitive controls designed for gloved operation
• Easy-to-clean exterior surfaces
• Connected Before, During, and After the Incident

The K85-N connects with the FLIR Responder App to extend the camera’s usefulness beyond basic thermal imaging.

• Configure camera settings at the station
• Install over-the-air firmware updates
• Stream live thermal video during training or operations
• Transfer recorded images and video
• Review incident footage for documentation and training
• Manage media wirelessly after the call

Key Specifications

• Certification: NFPA 1930:2025
• IR resolution: 640 × 480 pixels
• Display: 4-inch backlit LCD, 640 × 480 pixels
• Display frame rate: 60 Hz
• Image frequency: 30 Hz
• Thermal sensitivity: <60 mK
• Temperature range: -4°F to 1,202°F
• Field of view: 53° × 40°
• Image modes: Basic, Search, Detection, High Heat, and White Hot
• Focus: Fixed
• Protection rating: IP67
• Drop resistance: 6.6 ft.
• Battery runtime: Approximately four hours
• Battery type: Rechargeable lithium-ion
• Wireless connectivity: Wi-Fi and Bluetooth
• Mobile compatibility: FLIR Responder App

What’s Included

• FLIR K85-N thermal imaging camera
• Two rechargeable batteries
• Battery charger
• Battery tool
• Power supply
• Carabiner strap
• Lanyard strap
• Neck strap
• Retractable lanyard
• USB cable
• Printed documentation
• Calibration certificate

Warranty

When registered with FLIR within 60 days of purchase, the K85-N is eligible for the FLIR Fire Service 2-5-10 Limited Warranty:

Two years of battery coverage

Five years of parts-and-labor coverage

Ten years of detector coverage

The FLIR K85-N combines maximum thermal resolution with NFPA-certified performance, continuous imaging, wireless connectivity, and rugged durability. For departments that require compliance without sacrificing visibility or capability, the K85-N is FLIR’s premier firefighting thermal imaging solution.
